This called program is used to obtain information about
an opened channel or file name, including data files, programs, SELECT channels, pipes, etc.
ERR=XXXX
|
Branch to line XXXX if there is no file opened to channel
CHAN or when using the second format, if CDS187 is unable to open the
specified file. There is no user prompt except when the FID()
function returns an error other than 14. |
| Input Data Elements |
CHAN
|
Channel/device number of file, program, or device currently opened.
CHAN and the CDS187.MODE global variable are
used to indicate whether CDS187 should perform complete, or limited
function. The CDS187.MODE global value is based on
the 'Limit CDS187 output' parameter in Dynamo Configuration Maintenance
(SMC).
CDS187.MODE global |
CHAN
|
CDS187 function |
| not set |
positive |
complete |
| negative (Negate actual channel#) |
partial |
set to "part" |
positive and under 100,000 and Y.APPID$(1,2)<>"CD" |
partial |
| negative (Negate actual channel#) |
partial |
| over 100,000 (Add 100,000 to actual channel#) |
complete |
The following output fields are not populated when CDS187 runs in
'partial' mode (in order to save processing time, context switches, disc
I/O, etc).
COCODE, DDNAME, OWNER, GROUP, PERMISSIONS,
READONLY, LINKNAME, DESC and LISTING fields,RECSUSED on IND files,- All programs will return
TYPE
as PGM, regardless of level and encryption,
FILESIZE
and SIZE will also not be accurate for files larger than
4Gb.
|
Y$
|
Session control variable. When using the second format, CDS187
will add Y.COMPCODE$ to the front of the file name from
REC$. |
REC$
|
When using the second format, CDS187 will return information about a
file name REC.FILNAM$ or REC.FILENAME$ |
| Output Data Elements |

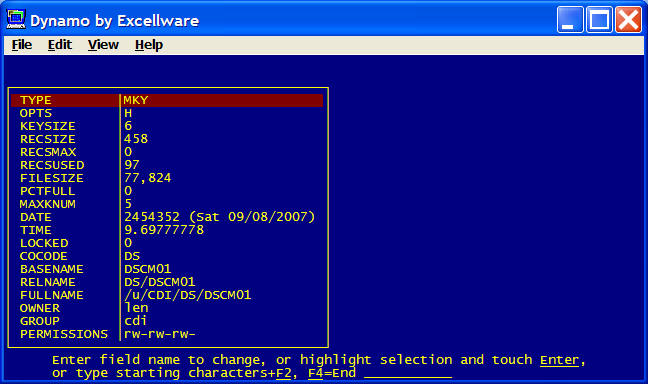

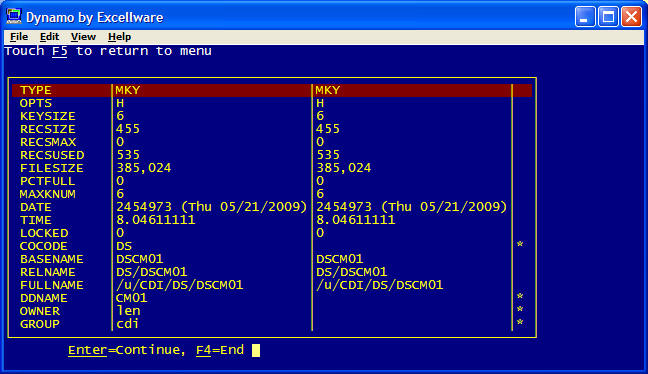

S187.TYPE$
|
| DIR |
Direct Disc File |
| EPG |
Encrypted Program (current BBx version) |
| EP? |
Encrypted Program (? represents BBx version. 4=bbx progression 4, 5=pro5, 6=bbj) |
| FTS |
Full Text Search |
| IND |
Indexed Disc File |
| SRT |
Sort Disc File |
| SER |
Serial Disc File |
| PGM |
Program (current BBx version) |
| PG? |
Program (? represents BBx version, 4=bbx progression 4, 5=pro5, 6=bbj) |
| DEV |
Device |
| DRY |
Disc Directory |
| PIP |
Pipe to operating system command |
| SEL |
Data file opened using SELECT verb |
| SCK |
Socket (SKT on versions before 07/02/2011) |
| STR |
String File |
| SKY |
BBx Multi-Keyed File (Single key version) |
| SKX |
BBj Xkeyed File (Single key version) |
| SKJ |
BBj Jkeyed File (Single key version) |
| SKV |
BBj VKeyed File (Single key version) |
| MKY |
BBx Multi-Keyed File (Multiple key version) |
| MKX |
BBj Xkeyed File (Multiple key version) |
| MKJ |
BBj Jkeyed File (Multiple key version) |
| MKV |
BBj Vkeyed File (Multiple key version) |
| ??? |
Other (unknown file type) |
|
S187.OPTS$
|
File options including any of the following codes.| H | Indicates file is in the BBx Highly Recoverable Format, recommended for all data files to improve file error recovery | | L | Indicates file is defined with the Large BBx option indicating it can grow larger than 2Gb. Only recommended for such large files, since the pointers are 64 bits long, as opposed to 32 bits for regular files, which increases file size. | | 4 | Indicates the older 4Gb BBx file size option, used in BBx version prior to 3.0 | | N | Indicates the BBj program does not have line numbers |
|
S187.KEYSIZE
|
Returns the key size of DIR, SRT, SKx files, and on MKx files, the key size of the primary knum. |
S187.RECSIZE
|
Returns the record size of DIR, SKx, IND and MKx files. Returns 0 for SRT files, and SKx files with zero characters per record. |
S187.RECSMAX
|
Returns the maximum number of records for DIR and SRT files. Also may apply to IND, SKx and MKx files if number of records are limited. |
S187.RECSUSED
|
Returns the number of records is use for DIR, SRT, SKx, and MKx files. For IND files,
RECSUSED contains the actual number of records (if the file is dynamic), or the same as
RECSMAX (if not dynamic). |
S187.FILESIZE
|
The total number of characters in a disc file. For files over
2Gb in size, this number may be inaccurate on Windows file systems or when
CHAN is negative. |
S187.SIZE$
|
The total file size formatted to take 7 characters. Mb
represents 1,000,000 not 1,024,000. Gb represents 1,000,000,000
not 1,024,000,000.| File size < 1Mb | Actual File size ###,##0 | | File size < 1Gb | ###.0Mb | | Larger | ###.0Gb |
|
S187.PCTFULL
|
For non-dynamic files, PCTFULL will indicate the percentage of records in use. |
S187.MAXKNUM
|
For MKx files, this will indicate the maximum KNUM for
the file. Dynamo Tools support files with up to 254 KNUM's which
is less that the maximum supported by BBj. |
S187.ACTKNUM
|
For MKx files, this will indicate the active KNUM for the
file. |
S187.ACTKEYSIZE
|
For MKx files, this will indicate the total number of characters in
the active KNUM for the file. |
S187.DATE
|
For programs and data files, DATE contains the BBx julian date when the file was last modified.
Use the BBx DATE() function to format. |
S187.TIME
|
For programs and data files, TIME contains the time when the file was last modified.
It is in hours and fractions of an hour. Use the BBx DATE()
function to format. |
S187.LOCKED
|
| 0 |
File not currently locked |
| 1 |
File currently locked |
| 2 |
File cannot be locked (DRY type) |
|
S187.COCODE$
|
S187.COCODE$ indicates the Dynamo Tools two character
company code, based on the file path name or current PREFIX.
If the relative file name is located in a folder with a 2 character
name, such as DY/, CD/, or a sub-folder below a 2 character folder name
such as PY/PGM/ or RL/PROG/ then the company code is the two character
folder name. In other cases including files located in a temporary job folder such
as J/12345/FILENAME, or across a data server with a file name such as
/<server,pro5srv>/usr/data/FILENAME, or a folder on a different file
system such as /usr8/data/FILENAME, the company code is derived by
checking for the base file name located in any of the relative two
character folders specified in the PREFIX, such as DS/ CD/
RL/ PY/ etc. If the base file name is located, then the company
code will indicate this folder name. If the file is not found in any of these locations, then the current
company code is returned in S187.COCODE$. For data files, S187.COCODE$ is typically used to
determine the company code for the data dictionary. For program
files, S187.COCODE$ is used to determine the company code
for the DD90, DD91, and DD92 data dictionary files which are used to
store called program arguments and program revision notes. Note
that programs may also have a regular data dictionary entry, but in that
case S187.COCODE$ will reflect the DD90/DD91/DD92 company
code and not the DD10 company code. |
S187.BASENAME$
|
Contains the base name for disc files, which excludes all drive letters and path. |
S187.RELNAME$
|
Contains the relative file name, relative to the SMSDIR base directory. If the file is not below the SMSDIR directory, then
S187.RELNAME will be the same as S187.FULLNAME. When using the !DSOPEN global to access a bbj pro5 data server, S187.RELNAME$ will not include the data server prefix. |
S187.FULLNAME$
|
Contains the full path name including drive letter on Windows systems.
When using the pro5 !DSOPEN global, the data server prefix will not be included unless STBL("!DSNOHIDEFID")="1".
|
S187.DDNAME$
|
Contains the data dictionary name. It is similar to the BASENAME but will exclude the company code when the data file
name includes the company code. |
S187.OWNER$
|
The owner of the file, if available on this operating system. |
S187.GROUP$
|
The group of the file, typically only available on non-Windows operating systems. |

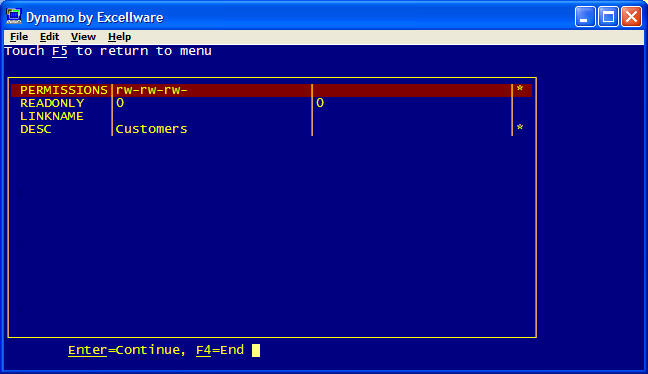

S187.PERMISSIONS$
|
The file permissions, typically only available on non-Windows operating systems. In the format rwxrwxrwx where the first rwx applies to the file owner, the second to others in the same group, and the third to those in other groups. The r indicates read, the user can read the file. The w indicates write, the user has permission to write to the file. The x indicates execute, and applies to executable files (binary, not programs), and to directories. The x permission in a directory is required to enable accessing file in that directory. If permission is not granted, then the r, w, or x, are replaced with "-". |

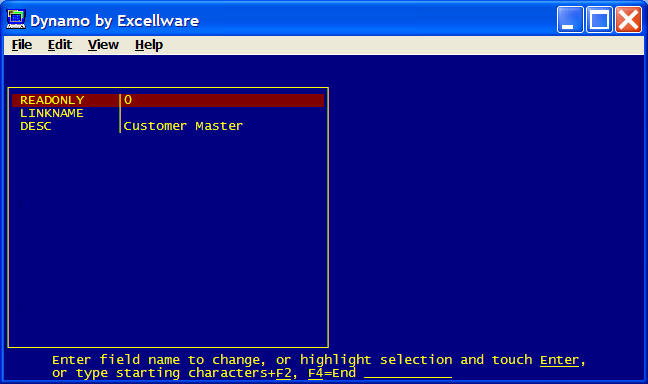

S187.READONLY
|
On Unix like systems, S187.READONLY will be 1 if the current user does not have write permissions to the opened file or device. This can be used by applications to enable a read-only mode and bypass any WRITE's that would cause a bbx error 13 or 18. |
S187.LINKNAME$
|
On Unix like systems, if the file is a symbolic link, then S187.LINKNAME$ will be the 'linked to' file name. |
S187.DESC$
|
DESC$ contains file descriptive information that varies depending on the file type:
| DIR, IND, SRT, SER, SKx, MKx | File description as obtained from Dynamo Data Dictionary | | EPG, EP? | File description as obtained from the Called Program Data
Dictionary (XXDD90) or "Encrypted Program" | | PGM, PG? | First remark found in program, or "*** Uninitialized Program ***", or "*** No Remark ***", or "BBx Progression ?/ format program" | | DEV | Device name from FIN() | | DRY | empty | | PIP | "Pipe" | | SEL | empty | | SCK | "Socket" | | STR | For text files, DESC$ will contain the first few characters of the file, excluding any line feeds. For binary files on Unix like systems,
DESC$ will contain the information available using the "file" command. |
|
| LISTING$ |
When running BBj, this variable will be set to the program statements separated by line feeds for all PG5 and PGM file types. |
KEYDEF$
|
KEYDEF$ will contain the key definition data for MKx data files.
KEYDEF$ can be passed to CDS064 to specify the key structure when defining a file.
KEYDEF$ is similar, but not exactly the same as the BBx
FIN() function. Note that all files use the 8
character FIN() format, even bbj files that would require the 20
character XFIN() format to describe the key structure for MKX, MKJ, and
MKV files. This imposes some limits on possible key structures
when used with Dynamo Tools, including a maximum of 256 KNUM's, maximum
field# of 255, maximum field offset of 65,535, and a maximum key segment
length of 255 characters. |
